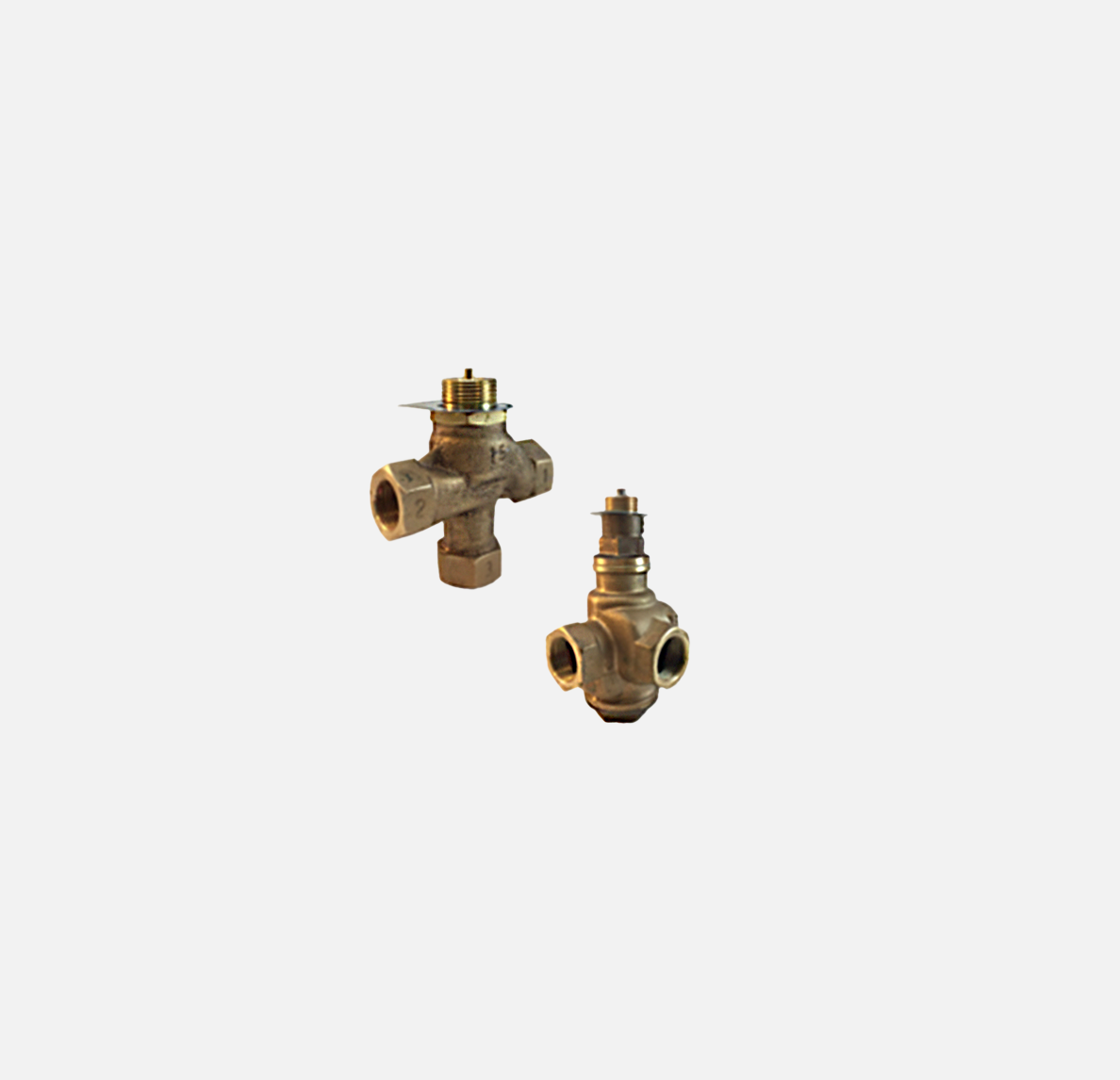

3-WAY CONTROL VALVES L3S - DN15-50

APPLICATIONS

Control valves type L3S are designed for regulating fresh water,
cold and hot sea-water and lubricating liquids. The valves are used
in conjunction with temperature regulators in control systems for
cooling and heating of domestic premises, district heating, industrial
processes or marine installations.

GENERALLY
Sizes: DN15, 20, 25, 32, 40, 50
Nom. pressure: PN10
Material: Gun metal
Material (Valve Internals): Gun metal
Internal threaded connection: ISO 7/1

DOWNLOADS
Data sheet: 2.2.07
Data sheet spare part: S-2.2.07

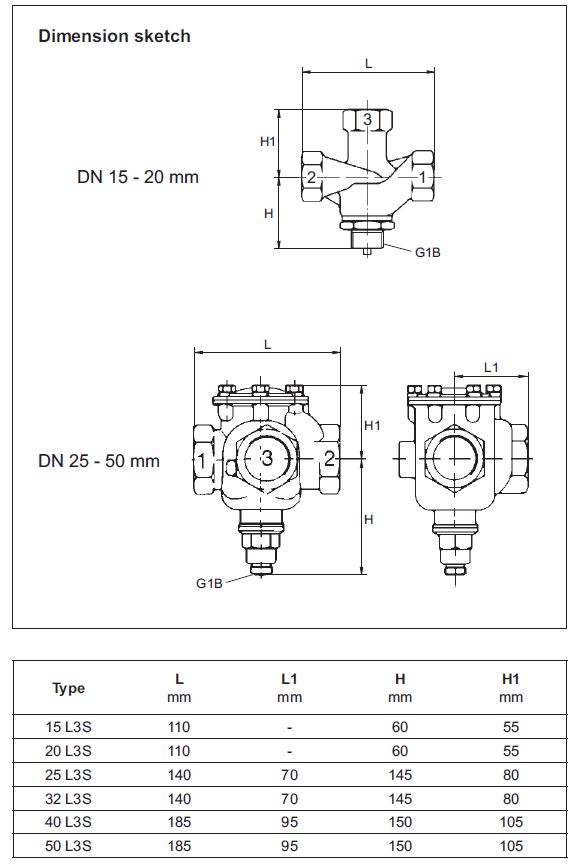

Dimension drawing: 2.2.07- Dimension
Instruction: 99.22.01

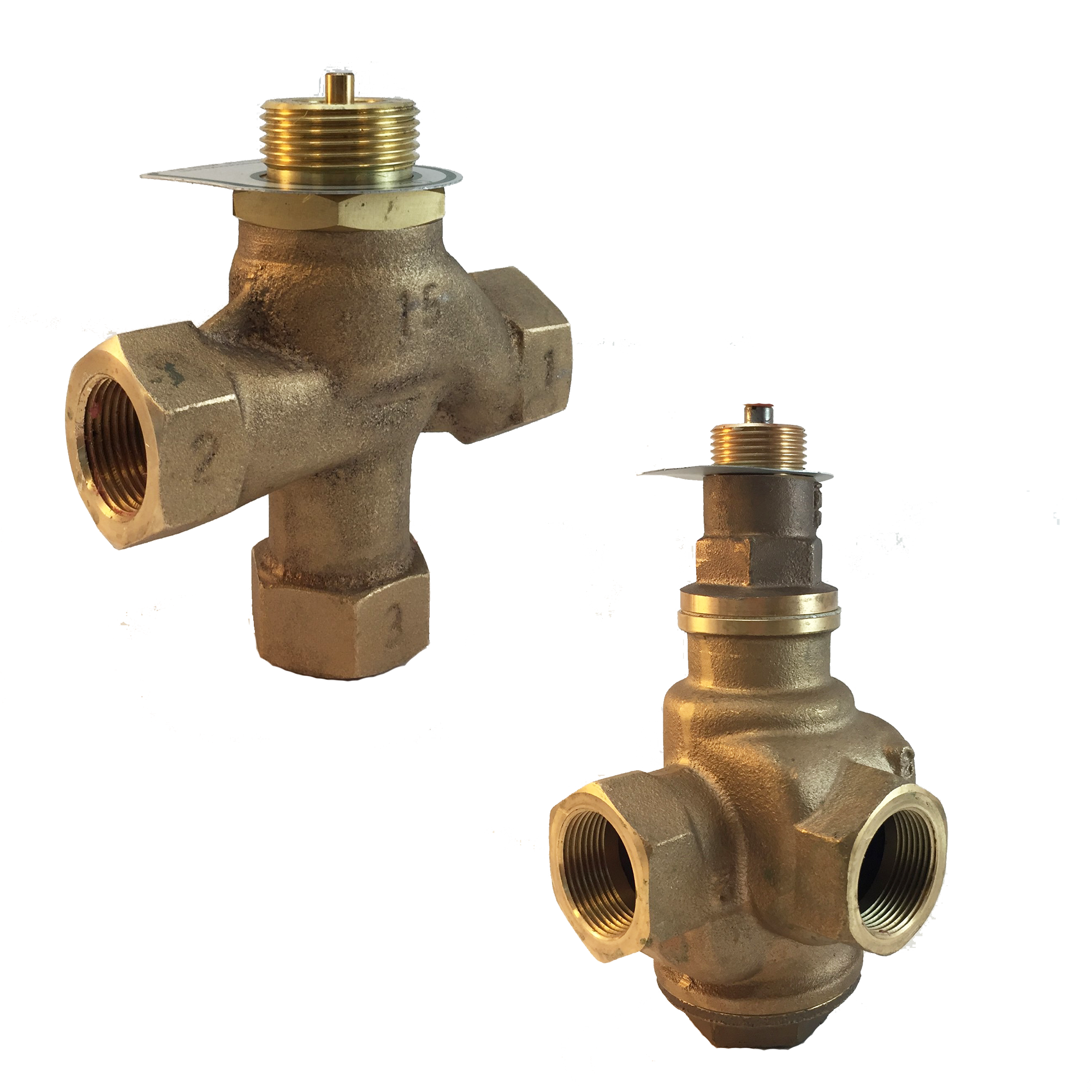

Image: Image PNG
